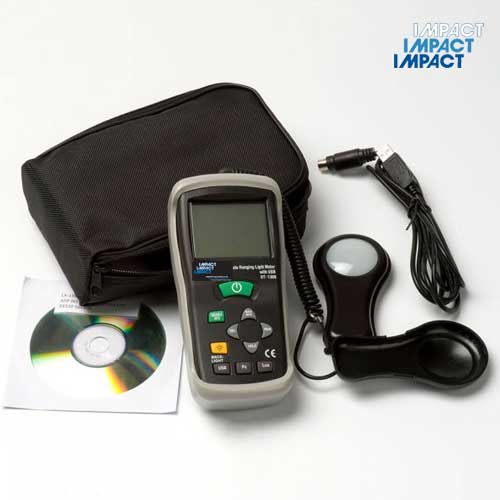

Easy-to-use light meter with USB interface, wide measuring range up to 400,000 Lux, large LCD
display, 40-segment analogue bargraph, relative mode and user-selectable measuring units.
Ideal for environmental monitoring, health & safety checks, and industrial applications.
- Measures both Lux and Foot-Candles (FC), user selectable
- Range selection of 4 Lux ranges and 4 FC ranges
- Impact-resistant ABS case with protective rubber boot
- Silicon photo diode sensor and spectral response filter
- Fully cosine corrected
- Sensor connected to the instrument by a fixed 1.5 metre (approx.) coiled cable
- Measuring rate of 1.5 times per second
- 43mm LCD display with Backlight, 42 segment bargraph and function indicators
- Data Hold freezes measured values
- Min/Max Memory
- Peak Min Hold and Peak Max Hold
- Relative readings from user set value
- Over Range indication
- Reset function
- Auto Power Off after 30 minutes of no activity
- USB interface for real time data output to PC or Laptop
- Impact-resistant ABS case with protective rubber boot
- Supplied with carry pouch, rubber boot, Software, USB interface cable, protective lens cap
- and battery
| Range Lux |
Resolution |
Accuracy |
|
400/4,000/40,000/400,000 Lux
|
0.1/1/10/100 Lux
|
±5% ±10 digits below 10,000 Lux
±10% ±10 digits above 10,000 Lux |
| Range Footcandles |
Resolution |
|
40/400/4,000/40,000 FC
|
0.01/0.1/1/10 FC |
| Operating Temperature |
0 to 50º C (32 to 122º F) |
| Operating Humidity |
Maximum 80%RH |
| Power |
1 x 9V PP3 Alkaline Battery (LR-61) |
| Dimensions |
170 x 80 x 43mm including rubber boot |
| Weight |
390g |
